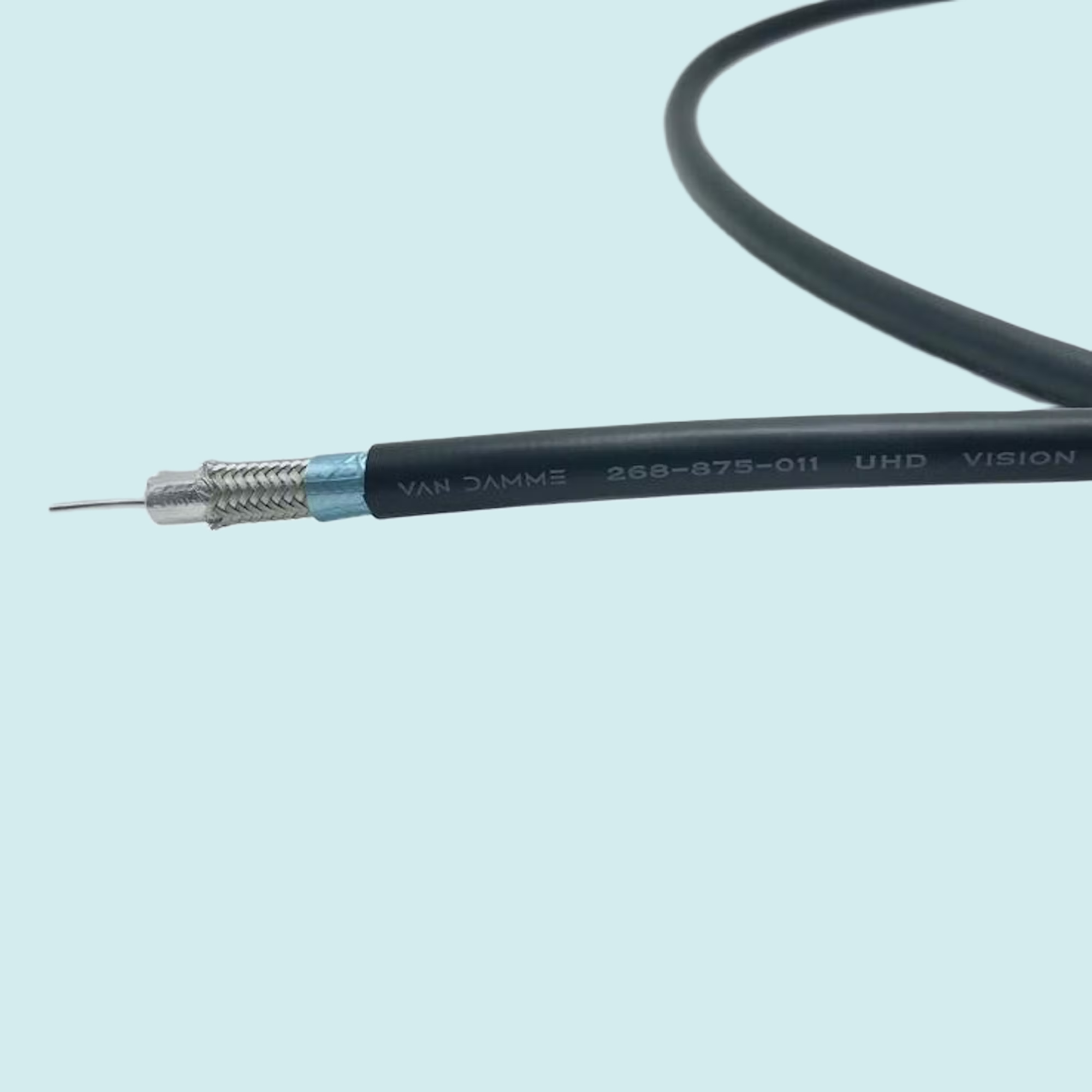

VAN DAMME 75OHM ENHANCED PERFORMANCE UHD VISION 12GHZ RG11 - 12G COAXIAL CABLE

Van Damme Enhanced Performance HD 12G Vision coaxial cable is based on the RG11/U industry standard. Its precision design guarantees optimal electrical performance, ensuring trouble-free signal transmission 4K Single-link 12 Gbps UHDTV, SMPTE 424M i 292M HD-SDI, as well as SDI and analog video signals.

Technical specifications:

• Maximum spool length 500m
• Wire 1 x 1.63 mm silver-plated oxygen-free copper
• Wire dimensions 1 x 1.63 mm, 2.06 mm², AWG 14
• Dielectric Polyethylene foam with gas additive
• Diameter 7.10 mm
• Screen 1 Aluminum-polyester film <100% coating
• Screen 2 Galvanized oxygen-free copper braid, coating < 95%
• Screen 3 Aluminum-polyester foil - glued to the jacket
• Coating material PVC composite in Jet Black RAL 9005 color
• Overall diameter 10.16 ± 0.25 mm
• Bending radius 15 x total diameter
• Wire resistance < 8.2 Ω/km
• Capacity 51 pF/m
• Impedance 75 ± 3 Ω
• Propagation speed >85%
• Attenuation at 1500 MHz 15.85 dB/100m
• Attenuation at 3000 MHz 23.20 dB/100m
• Attenuation at 4500 MHz 28.90 dB/100m
• Attenuation in 6000 MHz 34.28 dB/100m
