VAN DAMME SUPER PURPLE SERIES DIGILOG ENHANCED AES/ANALOGUE INSTALLATION LSZH - ENHANCED INSTALLATION MULTI-PAIR CABLE 110 OHM HALOGEN-FREE

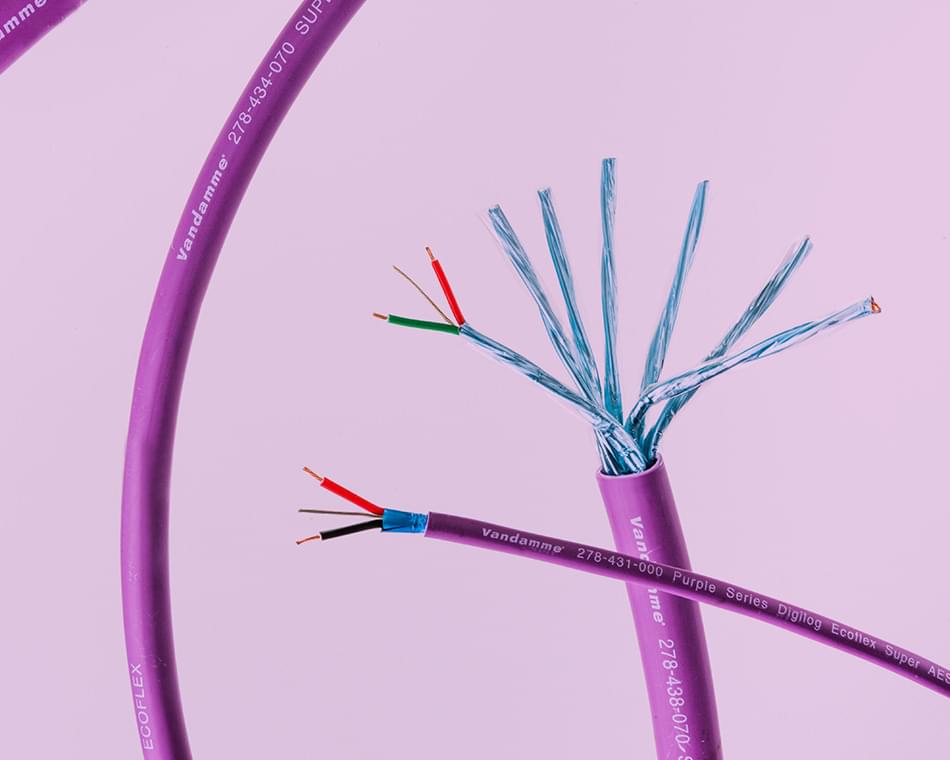

The Van Damme Super Purple series is a dedicated halogen-free version of the LSZH (Low Smoke Zero Halogen) of the well-proven Van Damme Super Green series for the installation market. Available in single-pair variants and as multi-pair cables in 4- and 8-pair versions, the cables in this line are the ideal solution for transmitting AES/EBU digital audio signals with a sampling frequency of 96 kHz over long distances - exceeding 150 meters without the need for active signal equalization. The cable is also ideal for long distance transmission of analog audio signals and any critical balanced data transmission signals that require low capacitance.

Technical specifications:

Multicore:

• Maximum spool length 500m
• Wires 7 x 0.25 uninsulated ultra-pure oxygen-free copper wires
• Wire dimensions 7 x 0.25 mm, 0.34 mm², AWG 22/7
• Insulation Polyethylene foam
• Screen type 24 µm aluminum-polyester film >150% coating
• Drainage cable 7 x 0.16 mm tinned ultra-pure oxygen-free copper
• Vapor isolation Thermoplastic Polymer LSZH in Red Lilac RAL 4001 color

• Resistance
  • Conductor < 58.8 Ω/km
  • Insulation < 5000 MΩ/km
• Capacity
  • Between conductors 40 pF/m
  • Between conductor and shield 80 pF/m
• Impedance 110 ± 20% Ω
• Suppression at 3 MHz 4.90 dB/100 m

General construction

• Outer shell material Thermoplastic Polymer LSZH in Red Lilac RAL 4001 color
• Bending radius 15 times the total diameter

1-pair cable 278-431-070:

• Wires 7 x 0.25 mm uninsulated, ultra-pure oxygen-free copper
• Wire dimensions 7 x 0.25 mm, 0.34 mm2, AWG 22/7
• Insulation Foam-coated polyethylene
• Screen type 24 µm aluminum-polyester film >150% coating
• Drainage cable 7 x 0.16 mm uninsulated ultra-pure oxygen-free copper
• General Coverage Thermoplastic Polymer LSZH in Red Lilac RAL 4001 color
• Overall diameter 4.50 ± 0.15 mm
• Bending radius 15 x total diameter
