VAN DAMME PURPLE SERIES DIGILOG ECOFLEX AES/ANALOGUE INSTALLATION LSZH -. INSTALLATION MULTI-PAIR CABLE 110 OHM HALOGEN-FREE

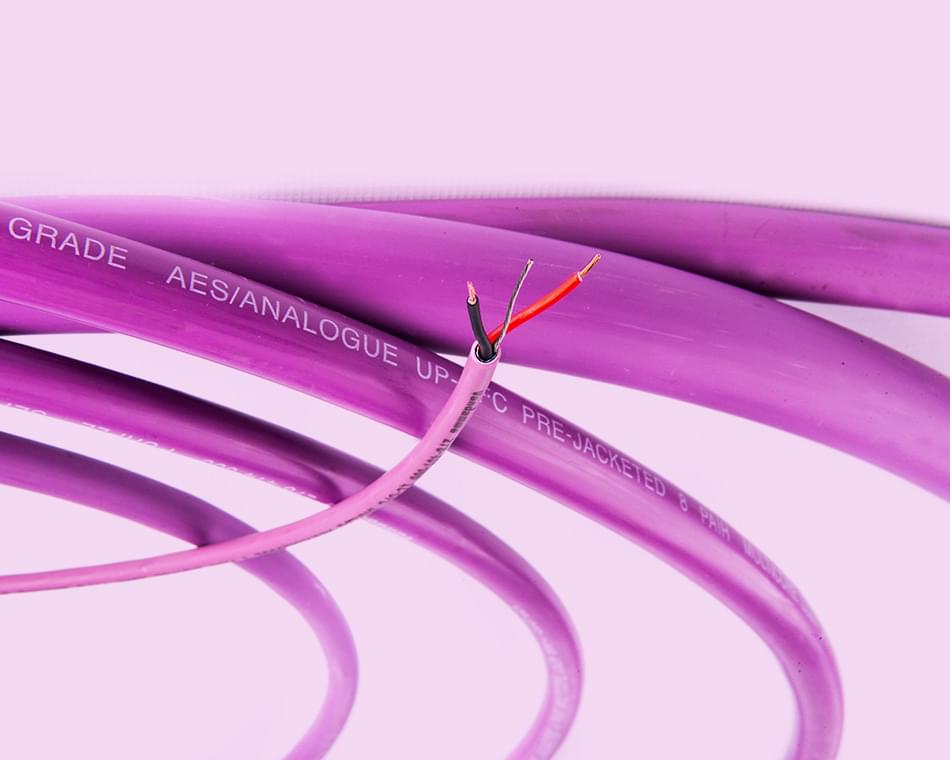

Van Damme Purple Series Digilog Ecoflex is a multi-pair audio cable in LSZH (Low Smoke Zero Halogen) sheath, specifically designed for fixed installations. The use of LSZH cables is now becoming a key requirement in public buildings and new construction projects. Electrically and mechanically based on the Van Damme Green series, this cable allows the transmission of AES/EBU digital signals and/or balanced analog audio signals, as well as paired data transmission signals such as RS485, RS422 and DMX512.

Technical specifications:

Multicore:

• Maximum spool length 500m
• Wires 7 x 0.16 uninsulated ultra-pure oxygen-free copper wires
• Wire dimensions 7 x 0.16 mm, 0.14 mm², AWG 26/7
• Insulation Polyethylene foam
• Screen type 24 µm aluminum-polyester film >150% coating
• Drainage cable 7 x 0.16 mm tinned ultra-pure oxygen-free copper
• Vapor isolation Polymer SHF-1 LSZH in Red Lilac RAL 4001

• Resistance
  • Conductor < 144 Ω/km
  • Insulation < 5000 MΩ/km
• Capacity
  • Between conductors 50 pF/m
  • Between conductor and shield 100 pF/m
• Impedance 110 ± 20% Ω
• Suppression at 3 MHz 7.05 dB/100 m

General construction

• Outer shell material Polymer SHF-1 LSZH in Red Lilac RAL 4001
• Bending radius 15 times the total diameter

1-pair cable 278-401-050:

• Wires 7 x 0.20 mm uninsulated, ultra-pure oxygen-free copper
• Wire dimensions 7 x 0.20 mm, 0.22 mm2, AWG 24/7
• Insulation Foam-coated polyethylene
• Screen type 24 µm aluminum-polyester film >150% coating
• Drainage cable 7 x 0.20 mm uninsulated ultra-pure oxygen-free copper
• General Coverage Polymer SHF-1 LSZH in Red Lilac RAL 4001
• Overall diameter 3.90 ± 0.15 mm
• Bending radius 15 x total diameter

• Resistance
  • Conductor < 90 Ω/km
  • Insulation < 5000 MΩ/km
• Capacity
  • Between conductors 50 pF/m
  • Between conductor and shield 100 pF/m
• Impedance 110 ± 20% Ω
